Lindapter fixings are approved steelwork fixings to overcome challenging steel-to-steel connections. Lindapter is the global leader in steelwork clamping systems that provide a rapid and cost-effective alternative to onsite drilling or welding.
Explore our wide range of Lindapter fixings including Toggle Clamps, Multiwedge, Metfloor Decking Fixings, Alphawedge and Comflor Decking Fixings.

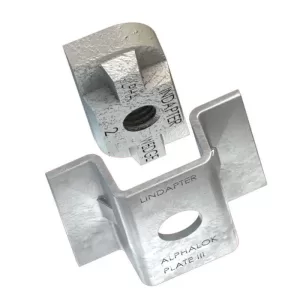

Lindapter Alphawedges are intended to fit into the dovetail slots of Richard Lees decks to provide a safe point with guaranteed loads for suspending building services. The wedge nut and locking plate are pre-assembled on the threaded rod before being put into the slot and rotated 90°. Tightening the nut against the locking plate secures the unit in place.

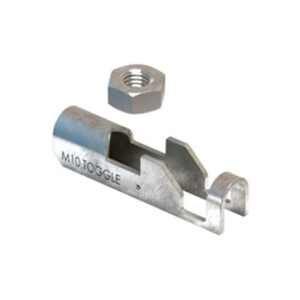

The Type TC toggle clamp is designed for service suspension from pre-cast hollow core slabs (minimum core depth 3″). It is quick and simple to install. FM certified for mild loading applications. Made of zinc-plated steel strip.

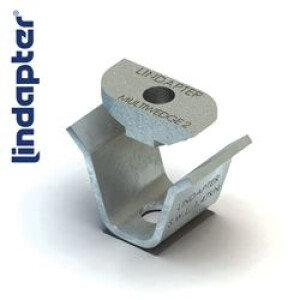

Lindapter Multiwedges are intended to fit into the dovetail slots of Kingspan decks to provide a safe point with guaranteed loads for suspending building services. The wedge nut and locking plate are pre-assembled on the threaded rod before being put into the slot and rotated 90°. Tightening the nut against the locking plate secures the unit in place.
Type MF Lindapter – MetFloor Decking Fixings are intended for Composite Metal Flooring’s MetFloor 60 and 80 profiles (CMF). M6, M8, and M10 sizes are available.
Lindapter composite decking fixes were developed in collaboration with the specified decking manufacturer to ensure that they meet all of the relevant requirements, from ease of installation to carry capacity.
To provide a safe location from which building services can be suspended with guaranteed capacity, all fittings are intended to fit inside the dovetail shaped re-entrant channel that is common throughout the profiles of various manufacturers.
The Type COM is a high-quality, low-cost decking fastening designed to fit inside the dovetail re-entrant channel of Tata Steel’s ComFlor® 60 and ComFlor® 80 composite decking profiles. The fastening is composed of two elements (a locking plate and a wedge) and offers a zero-impact technique of connection that prevents delamination and damage to the concrete deck. The Type COM is installed with a proper threaded rod from which building services may be easily and rapidly suspended after the concrete deck has been poured and acquired full strength.
